For scientific researchers in the Svalbard archipelago or high-altitude climbers in the Canadian Rockies, energy is a survival asset. However, the Arctic is a graveyard for standard solar hardware. When the temperature drops. -40°C (-40°F)the physical properties of normal polymers change, leading to catastrophic system failure.
But Singold Solarwe recognize that “off grid” often means “extreme”. To understand Aging of Solar Panels in -40°C Arctic Conditions There is a need to look below the surface in the material science of encapsulation and thermal expansion.
The “cryogenic challenge”: why standard panels fail in the cold.
Most commercial solar panels are designed for temperate climates (STC 25°C). In the Arctic, two primary physical phenomena threaten panel aging:
A. Glass transition temperature (TYes)
Every polymer used in solar encapsulation—such as standard EVA (ethylene vinyl acetate)—has a glass transition temperature. Below this point, the material changes from being flexible and rubbery to hard, brittle, and “glass-like.” In standard panels, reaching -40 °C is often exceeded. $T_g$ limit, which causes the internal layers to crack with the slightest mechanical vibration or wind load.
The coefficient of thermal expansion (CTE) is not the same.
A solar panel is a “sandwich” of different materials: glass/polymer, silicon cells, and copper busbars. Each expands and contracts at different rates. In extreme cold, the compression forces are very high. If the encapsulation material cannot absorb these shear forces, the resulting delaminationPeeling of layers — which allows moisture to enter and destroy the electrical circuit.

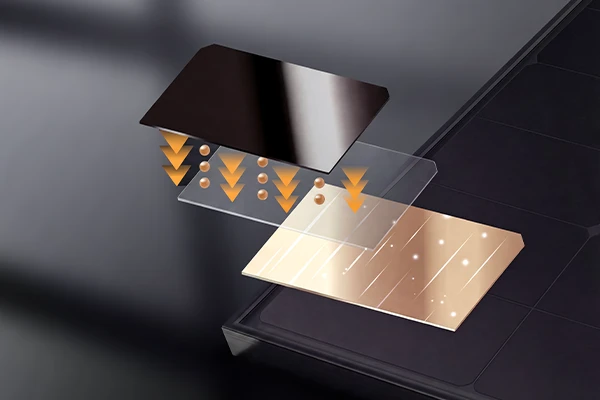

Singold’s solution: Polar grade encapsulation material
To do more Aging of Solar Panels in -40°C Arctic ConditionsSingold has re-engineered the encapsulation stack. We use advanced materials specifically selected for their low temperature flexibility.
High Performance POE (Polyolefin Elastomer)
Unlike standard EVA, Singold uses a higher grade. POE encapsulation For our Polar series modules. POE maintains its flexibility and structural integrity well below -40°C.
Anti-delamination: POE has high adhesion strength and low water vapor transmission rate (WVTR), ensuring that the “sandwich” remains closed even when the frame shrinks in the cold.
Zero Brittle Fracture: POE does not undergo radical rupture like lower quality polymers, protecting the delicate silicon cells from mechanical stress.
Special ETFE surface protection
For our elastic polar lines, we use high tensile. ETFE (Ethylene Tetrafluoroethylene) Film ETFE is chemically inert and stable over a wide temperature range (-200°C to +150°C). In arctic conditions, ETFE will not “cloud” or crack like PET surfaces, ensuring maximum light transmission even after years of sub-zero exposure.

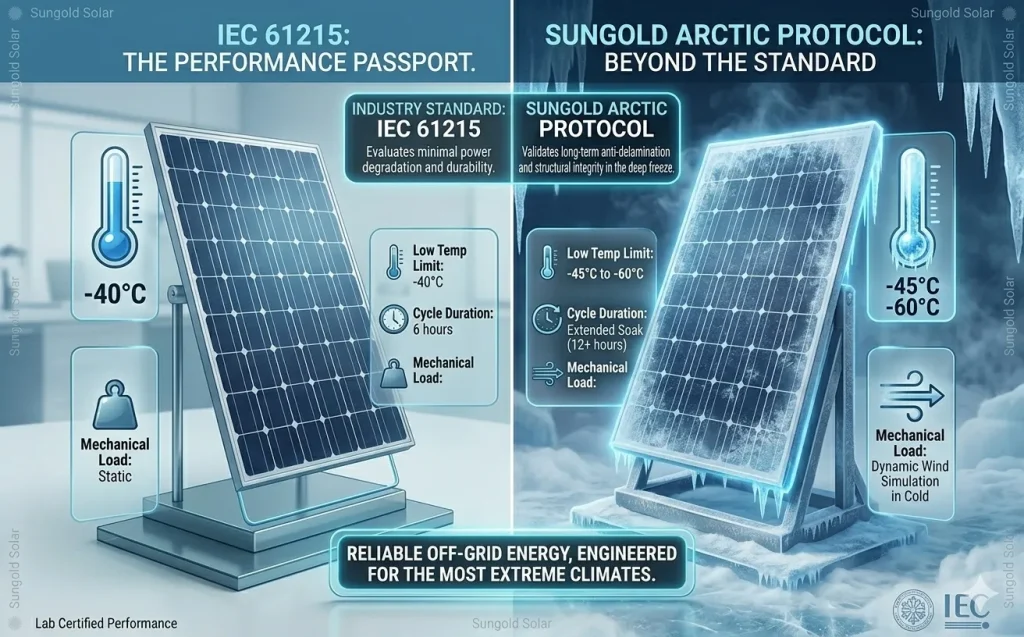

Amount of stability: -40°C thermal cycle test
Singold’s commitment to Arctic reliability is backed by rigorous lab simulations. While IEC 61215 Standard requires 200 thermal cycles, our Polar Grade R&D includes:
| Test parameter | Standard requirement | Singold Arctic Protocol |
| Low temperature range | -40 °C | -45°C to -60°C |
| Cycle duration | 6 hours | Extended intake (12+ hours) |
| Mechanical load | static | Dynamic wind simulation in winter |
Result: Singold modules show less. 2% power loss After 500+ extreme thermal cycles, while typical panels often suffer cell-to-busbar disconnection or backsheet cracking within the first 100 cycles.
Arctic operational advantages: Why the cold is actually an asset.
Interestingly, if the panel survives the physical stress of the cold. Arctic environment It actually offers a unique performance advantage.
Negative temperature coefficient
Solar cells are more efficient in winter. The bandgap of silicon widens at low temperatures, leading to higher voltage output ($V_{oc}$). A Singold 100W panel operating at -40°C can actually output significantly more power than its rated capacity, provided the charge controller can handle the increased voltage. Our arctic-ready material ensures you can take advantage of this “cold-boosted” performance without risking structural failure.
Albedo Effect Synergy
In snow-covered Arctic regions, high “albedo” (snow reflectance) increases the amount of light hitting the panel. Singold’s ETFE textured surfaces are designed to capture this reflected light from wide angles, Daily energy harvest Even when the sun is low on the horizon.
Frequently Asked Questions: Solar Reliability in Deep Freeze
Question: Will the panel wires break in -40°C?
A: Singold uses exclusive. UV-stabilized, low-temperature PV cables. These cables have insulation that remains flexible at -40°C, which prevents the outer jacket from cracking and exposing the live wires to ice.
Q: Does ice build-up damage the panel?
A: Our rigid panels are designed for high static snow loads (up to 5400 Pa). For flexible panels, the ETFE surface has less friction, allowing snow to slide off more easily than traditional glass or PET panels.
Q: How do I install panels on frozen ground or snow?
A: We recommend our lightweight flexible series for expeditions. They can be attached to sleds (plexes) or tents using strong eyelets, eliminating the need for heavy metal growing structures that tend to crumble in the cold.
Conclusion: trusted by modern explorers
gave Aging of Solar Panels in -40°C Arctic Conditions is determined at the molecular level. By choosing Singold’s POE and ETFE composite technology, you’re investing in hardware that refuses to crack under pressure. Whether you’re powering a remote weather station or a cross-continental ski expedition, Singold provides the energy security needed for the world’s most unforgiving climates.
